Thermal Protector, Protector, zaa. 50 ℃ (T) 3.5 mm (D) ; Qty = 50; THR -P-S50-50
Thermal Protector, Protector, zaa. 50 ℃ (T) 3.5 mm (D) ; Qty = 50; THR -P-S50-50

Thermal Protector, Protector, zaa. 50 ℃ (T) 3.5 mm (D) ; Qty = 50; THR -P-S50-50

  • Save $16
Shipping calculated at checkout.

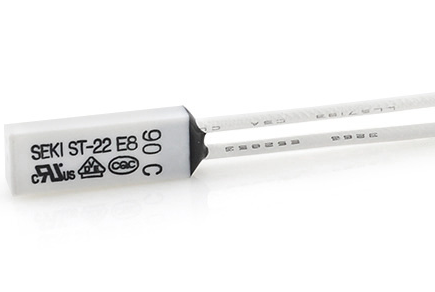

Thermal Protector, Protector

Item No: THR -P-S50-50

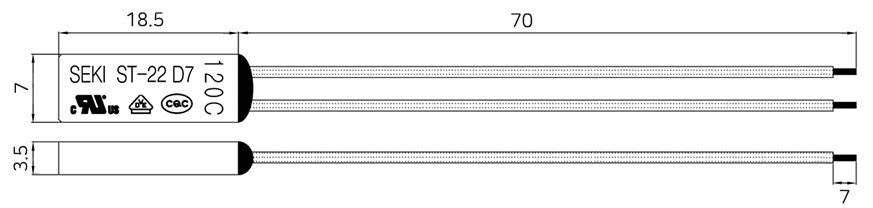

Temperature: 50 ℃ (T)

Depth: 3.5 mm (D)

Width: 7 mm (W)

Length: 18.5 mm (L)

Lead Wire Length: 70 mm (WL)

Made in South Korea

Brand: SEKI

Shipping Weight: 170 g

Normally closed thermal switch means that the contacts of thermal switch normally remain closed.
When temperature increases to the set value, the contacts would open and cut the circuit OFF

Load : 10A 125V AC (10000 times), 7A 250V AC (10000 times), 3A 48V DC (5000 times)

Current : minimum 5 mA (repeat), maximum 30 A (5 times)

Tolerance : + 5℃ ~ - 5℃

Lead Time : 5 days

Feature : Snap Action. Automatic Reset Bimetals. Moisture-Proof, Dust-Proof Superior Heat Response.
PBT Resin Case with Epoxy Seal.

Applications : Overheat protection for Electric Motors, Battery Chargers, Transformers,
Heating Pads, Fluorescent Ballasts, OA-Machines, Solenoids, etc

Certification : UL, VDE, CQC, KC

Made in South Korea
