Thermal Cutoff Fuse, SW-1-1, zad. 109 ℃ (Tf) 109℃+0℃.-5℃ ℃ (C) ; Qty = 100; THC -1-S109-100

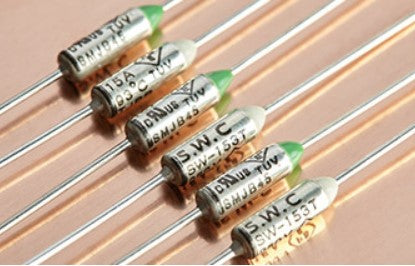

Thermal Cutoff Fuse, SW-1-1

Item No: THC -1-S109-100

Tf: 109 ℃ (Tf) Rated Function Temperature

Cutoff Temperature: 109℃+0℃.-5℃ ℃ (C)

Th: 94 ℃ (Th) Holding Temperature

UL Cert.: Approved (UL)

Made in South Korea

Certification: UL

Brand: S.W.C.

Shipping Weight: 220 g

Rated Voltage : AC 125 V & 250 V

Rated Current : 15 A (125 V) & 10 A (250 V)

Frequency : 50 or 60 Hz

Max. Allowable interupting Current : AC 250 V 15 A

Transient Overload Current : dc current pulses, with an amplitude 150 A
and a duration of 3 ms with 10 s intervals,are applied for 100 successive
cycles through the current path.

Lead Time : 5 days

Made in South Korea

Tf The maximum temperature at which a thermal fuse can be maintained
without causing a change in the state of conductivity while conducting
rated current for 168 hours.

Th The temperature at which a thermal fuse changes its state and breaks
the circuit under minimum current that can only detect the operation state
of the thermal fuse.
