Thermostat, Fixed, Capillary Type, zab. 220°C Fixed °C (t) 20/250 A/V (E) 05.0 X 60 mm (B); Qty = 5; THE-FCR-TS-220SF-5
Thermostat, Fixed, Capillary Type, zab. 220°C Fixed °C (t) 20/250 A/V (E) 05.0 X 60 mm (B); Qty = 5; THE-FCR-TS-220SF-5

Thermostat, Fixed, Capillary Type, zab. 220°C Fixed °C (t) 20/250 A/V (E) 05.0 X 60 mm (B); Qty = 5; THE-FCR-TS-220SF-5

  • Save $18
Shipping calculated at checkout.

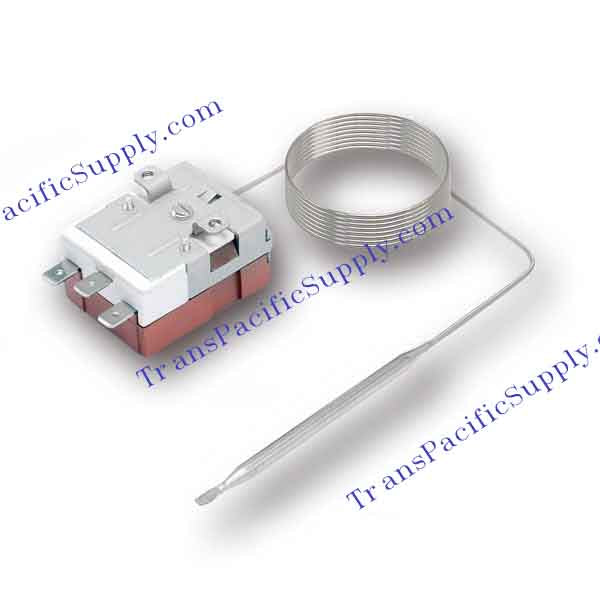

Thermostat, Fixed, Capillary Type

Item No: THE-FCR-TS-220SF-5

Temp Range: 220°C Fixed °C (t)

Electric Ratings: 20/250 A/V (E)

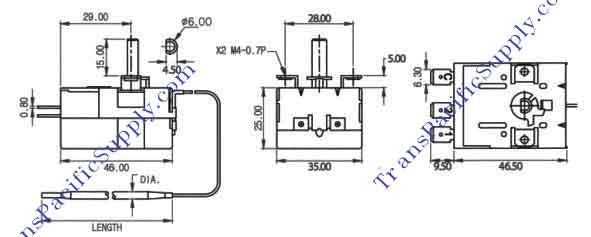

Bulb Dimensions: 05.0 X 60 mm (B)

Accuracy: ±11 °C (A)

Made in Korea

Brand: Rainbow

Shipping Weight: 650 g

Thermostat

Adjustable

Type : Capillary Type.

The temperature sensor consists of probe capillary tube, diaphragm and expansion medium.
When sensor is heated, the liquid medium heats up and expands.
The expansion of the medium increases in the closed-circuit system
The pressure increase is converted into a displacement in the diaphragm

Application : boiler, commercial refrigerators, convector, fryers, electric water heating oven, radiator sauna, water bed, cooking appliance

UL, RoHS, VDE, CSA, CE approved and RoHS compliance

Lead Time : 5 days
