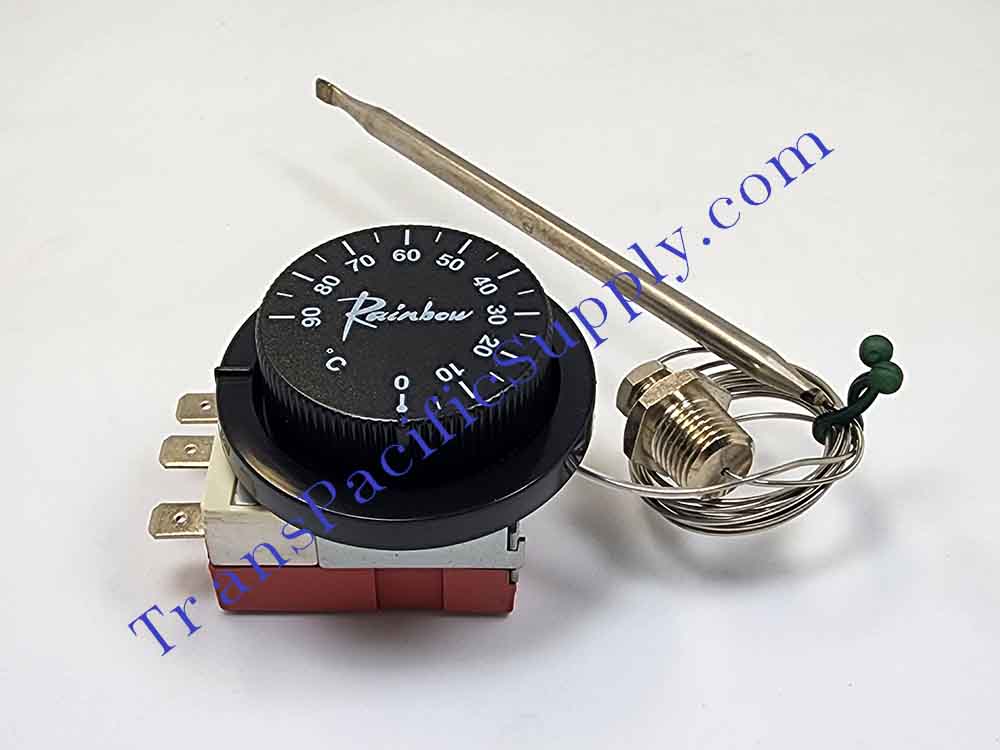

Thermostat, Adjustable, Capillary Type, Fitting Type

Item No: THE-ACFR-TS-090S-F-100

Temp Range: 0 ~ 90 °C (t)

Electric Ratings: 20/250 A/V (E)

Bulb Dimensions: 05.8 X 123 mm (B)

Accuracy: ±3 °C (A)

Made in Korea

Brand: Rainbow

Shipping Weight: 15200 g

Thermostat

Adjustable Type

Type : Capillary Type.

Fitting Type :1/4" PT (Customized for big order)

The temperature sensor consists of probe capillary tube, diaphragm and expansion medium.
When sensor is heated, the liquid medium heats up and expands.
The expansion of the medium increases in the closed-circuit system
The pressure increase is converted into a displacement in the diaphragm

Application : boiler, commercial refrigerators, convector, fryers, electric water heating oven, radiator sauna, water bed, cooking appliance

UL, RoHS, VDE, CSA, CE approved and RoHS compliance

Lead Time : 1 month
