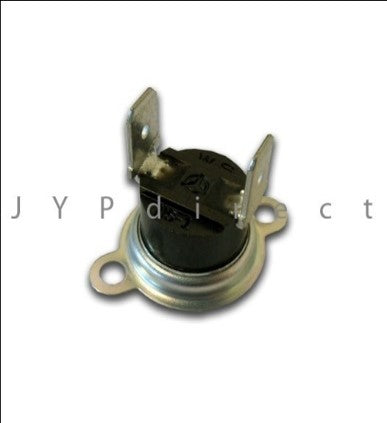

Thermostat, 1/2" Disc, Auto-reset, Normally Close, Vertical, Adjustable Angle Base Flange, R-Type (Reverse Type), Terminal Size 250

Item No: THE-2ACVS-R-250W35-500

Switch Closed Temp.: 35 ℃ (CT) / Temp. Tolerance (±5 ℃), "Switch Closed" means current on.

Switch Open Temp.: 25 ℃ (OT) / Temp. Tolerance (±5 ℃), "Switch Open" means current off.

Made in South Korea

Certification: CSA-C, CSA-US, CE / AR: CSA Std C22.2 No. 24-93, UL 353

Brand: WooSung Elecs

Shipping Weight: 2500 g

1/2" Disc Thermostat

R-Type (Reverse Type): Switch closes when the target temperature (CT) is reached.

Switch Type: Bimetal

Reset Style: Auto-reset (A)

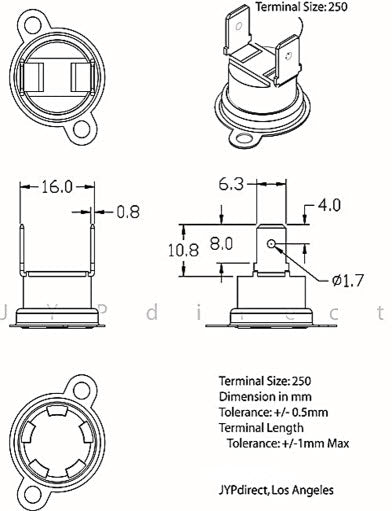

Terminal Size: 250 (Width 6.3 mm)

Terminal Orientation: Vertical (V)

Flange Type: Adjustable Angle Base Flange (S)

Rating: 15 A / 125 VAC, 10 A / 250 VAC, 20,000 Cycles

Dielectric Withstand: AC 1.8 kW /1sec

Insulation Resistance: 100 Mega ohms Min.

Lead-Free Solders (Pb Free)

Silver Contact Switch for Long-Life

Compliance: RoHS, MSDS

Applications: Boiler, Water heater, Electric heater, Bidet, Refrigerator,
Water purifier, Washing machine, Dryer, etc.

Lead Time: 5-15 days

Checked in South Korea
